TSDR 25

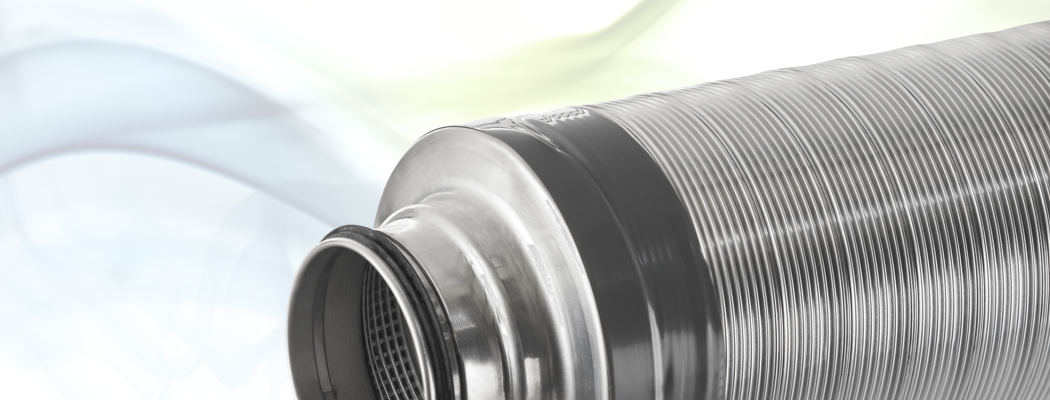

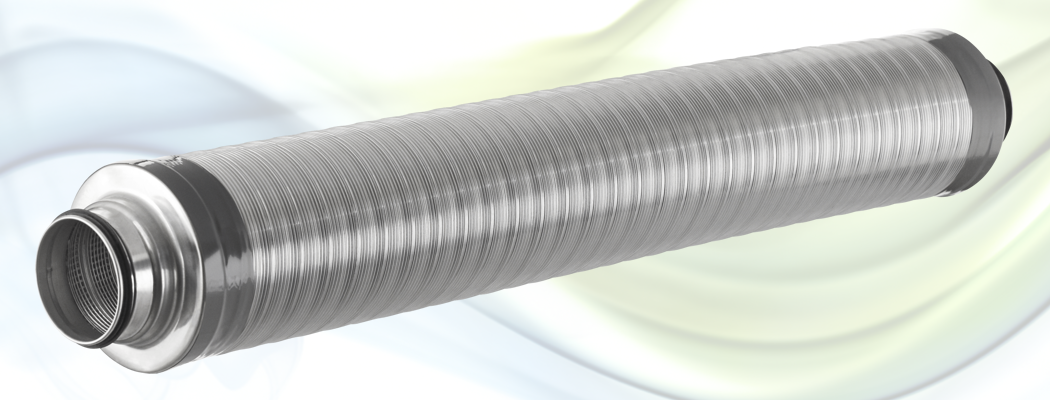

The TSDR 25 consists of a corrugated and perforated aluminum inner duct and a two-layer corrugated outer duct with aluminium end caps with rubber sealing. The space between the inner and outer ducts is filled with 25 mm sound absorbing material.
On request, a barrier can be applied which prevents the diffusion of glass wool particles.
application
- insertion loss damper
- air supply systems
- air conditioning systems
- sound attenuator
- the reduction of noise from machines
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 250 °C |
| operating pressure: | max. +3000 Pa |
| operating air velocity: | max. 10 m/s |
| bending radius: | min. 2.0 x outer ∅ |
| diameter range: | 80 - 450 mm |
| standard length: | 0.5 and 1.0 mtr |
|
Construction |
|
|---|---|
| inner duct: | perforated aluminium |
| barrier*on request: | plastic film |
| glass wool blanket: | 25 mm, 16 kg/m³ |
r-value: |
0.65m² K/W (ASTM C177-76) |
| outer jacket: | 2 layers of aluminium |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Product images
|
|
|---|---|
NEN 13180 |
|---|
The TSDR 25 fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|
|---|---|---|---|---|
| 0.5 mtr | 1.0 mtr | |||
| 80 | TSDR080/L | 1 | 168 | 84 |
| 100 | TSDR100/L | 1 | 120 | 60 |
| 125 | TSDR125/L | 1 | 80 | 40 |
| 140 | TSDR140/L | 1 | 80 | 40 |
| 150 | TSDR150/L | 1 | 80 | 40 |
| 160 | TSDR160/L | 1 | 80 | 40 |
| 180 | TSDR180/L | 1 | 48 | 24 |
| 200 | TSDR200/L | 1 | 48 | 24 |
| 224 | TSDR224/L | 1 | 28 | 14 |
| 250 | TSDR250/L | 1 | 28 | 14 |
| 280 | TSDR280/L | 1 | 15 | 12 |
| 300 | TSDR300/L | 1 | 15 | 12 |
| 315 | TSDR315/L | 1 | 15 | 12 |
| 355 | TSDR355/L | 1 | 10 | 10 |
| 400 | TSDR400/L | 1 | 8 | 4 |
| 450 | TSDR450/L | 1 | 8 | 4 |
L (length): 0.5 = 0.5 meter and 1.0 = 1.0 meter
