Stretchdec Rectangular
The Stretchdec Rectangular is an rectangular flexible duct, constructed from one layer of corrugated aluminium. The special seamed joint creates a very high air tightness and flexibility.
environment
- sustainable
- 100% recyclable
application
- suitable for mechanical air supply systems and air conditioning systems
- in systems where fumes are extracted
- above mentioned systems, where a special mechanical strength is required
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 250 °C |
peak load: |
400 °C |
| operating pressure: | max. +3000 Pa |
| operating air velocity: | max. 30 m/s |
| bending radius: | min. 1.0 x ∅ |
| dimension range: | 140 x 54 mm |
| 180 x 54 mm | |
| 195 x 54 mm | |
| standard length: | 0.5 - 3 mtr |
|
Construction |
|
|---|---|
| number of layers: | 1 |
whereof aluminium: |
1 |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Graphs
|
|
|---|---|
|

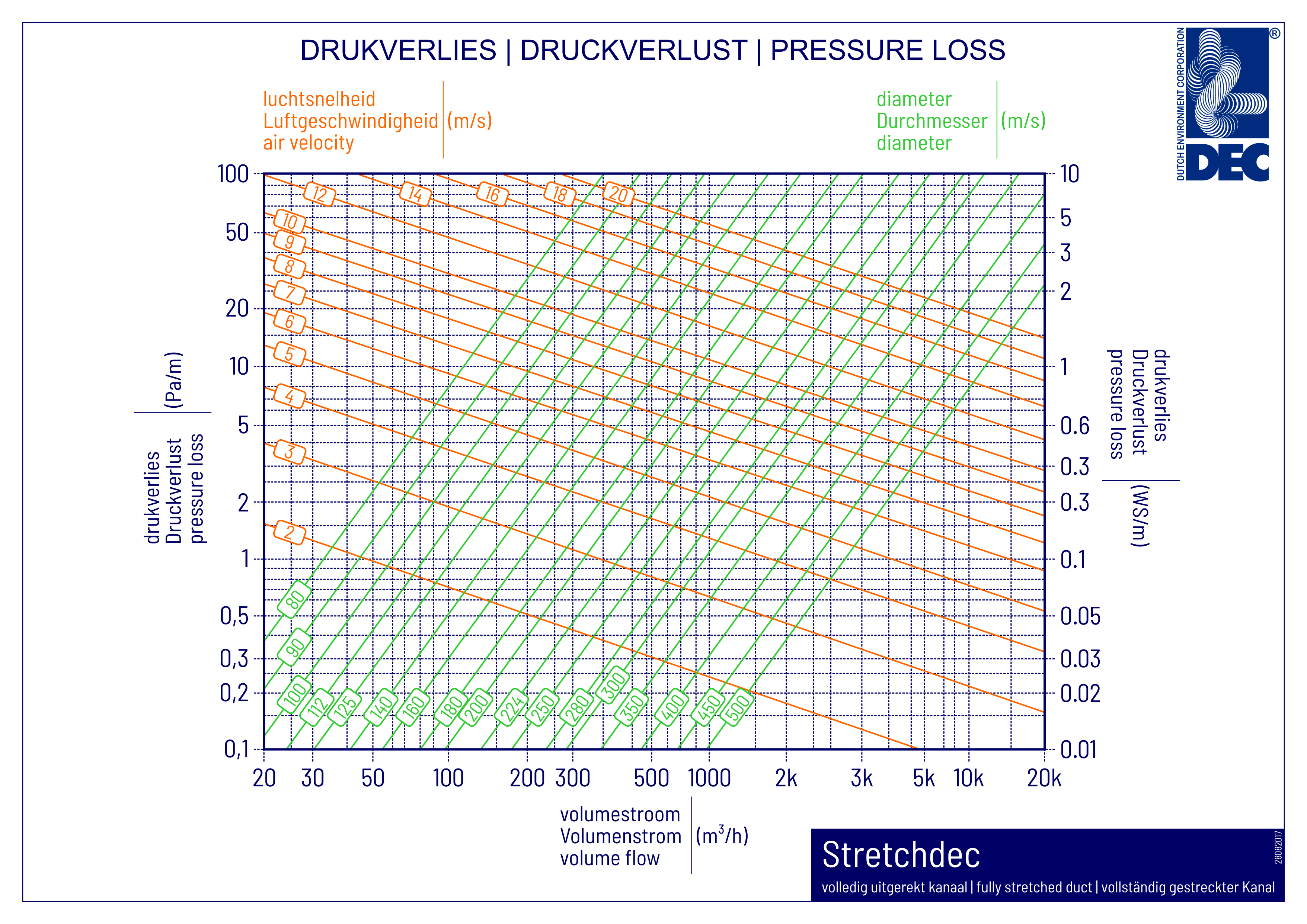

pressure loss (download as .PDF or as .PNG) |
|
Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
Europe |
EN 13501-1 | A1 |
United Kingdom |
BS476 | Part 4, 6, 7 and 20 |
France |
NF | M0 |
Germany |
DIN4102 | A1 |
NEN 13180 |
|---|
The Stretchdec Rectangular fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|
|
|---|---|---|---|---|---|
| 0.5 | 1 | 3 | |||
| 140 x 54 mm | DXGR140X54/L | 1 | 140 | 98 | 15 |
| 180 x 54 mm | DXGR180X54/L | 1 | 80 | 66 | 11 |
| 195 x 54 mm | DXGR195X54/L | 1 | 63 | 50 | 7 |
L (length): 0.5 = 0.5, 1 = 1 or 3 = 3 meter
