Sonodec 25 GLX
The Sonodec 25 GLX consists of a perforated aluminum/polyester laminate inner duct, thermally and acoustically insulated with a glass wool layer and provided with an aluminum/polyester laminate outer hose. A plastic barrier between the inner duct and the glass wool prevents particle migration into the air stream. Both ends are taped to create ready-made connections.
The Sonodec 25 GLX has an increased sound attenuation while the Sonodec 25 TRD has an increased insertion loss.
application
- air supply systems
- air conditioning systems
- sound attenuator
- the reduction of noise from machines
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 140 °C |
| operating pressure: | max. +2500 Pa |
| operating air velocity: | max. 25 m/s |
| bending radius: | min. 0.54 x ∅ |
| diameter range: | 82 - 508 mm |
| standard length: | 0.5, 1.0, 1.5 and 2.0 mtr |
|
Construction |
|
|---|---|
| inner duct: | aluminium/polyester laminate |
| barrier: | plastic film |
| glass wool blanket: | 25 mm, 16 kg/m³ |
r-value: |
0.65m² K/W (ASTM C177-76) |
| outer jacket: | aluminium/polyester laminate |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Graphs
|
|
|---|---|
|

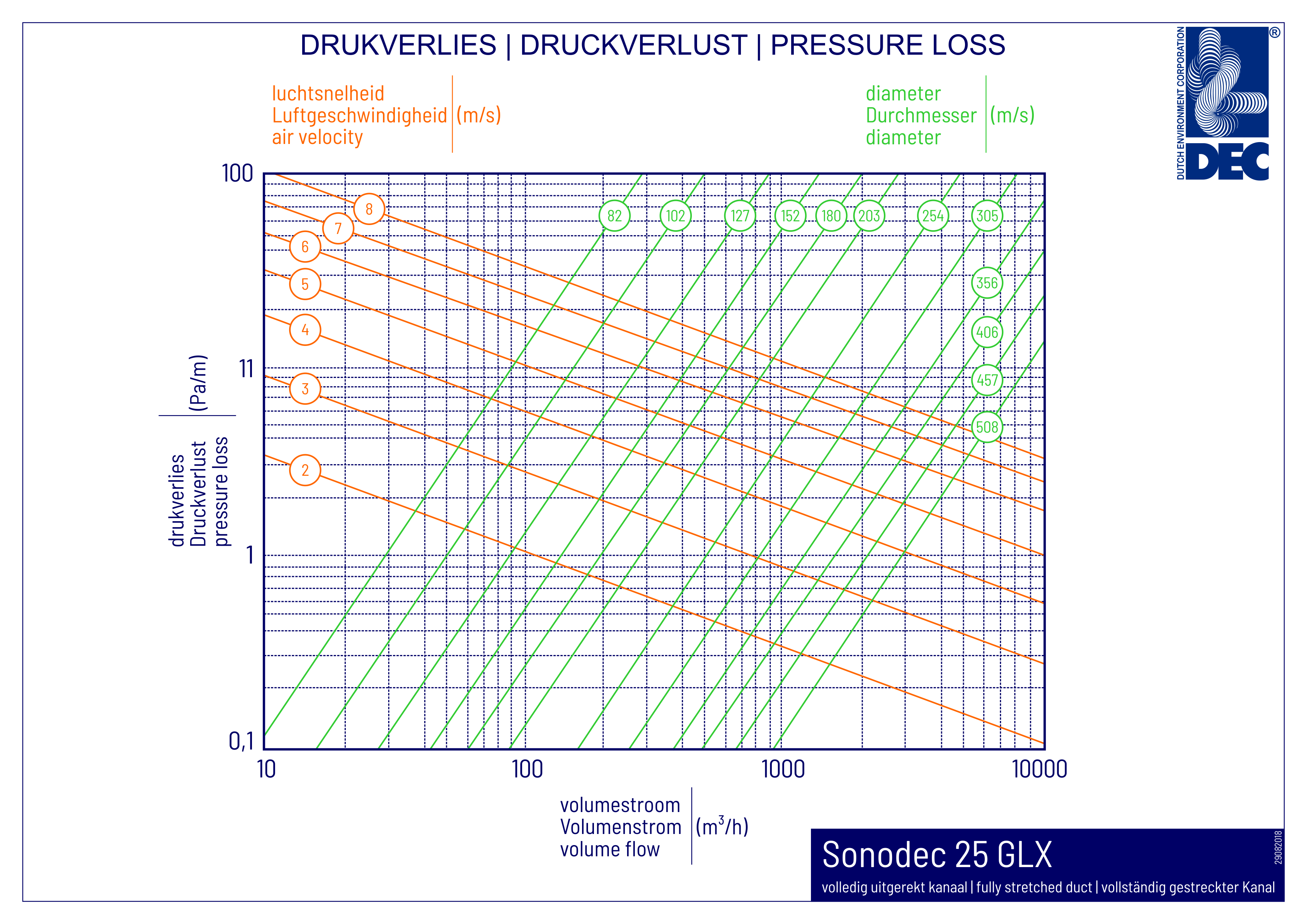

pressure loss (download as .PDF or as .PNG) |
|

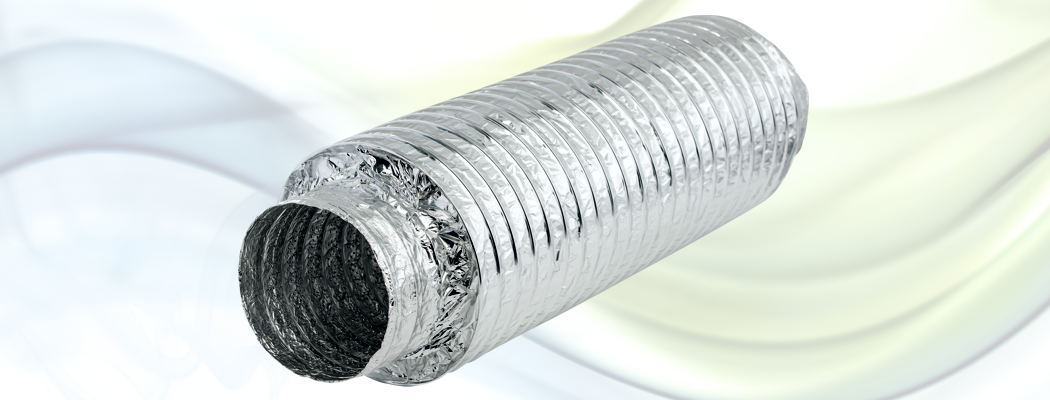

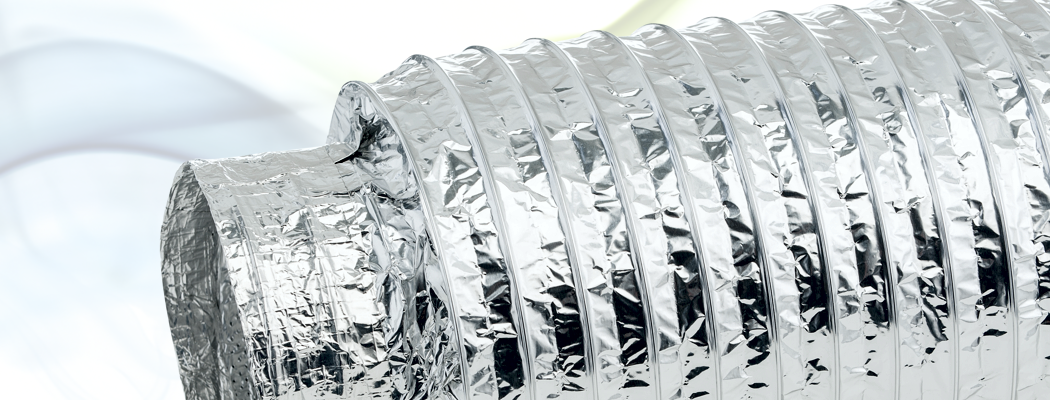

Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
Netherlands |
NEN 6065/6066 | Class 1 |
United Kingdom |
BS476 | Part 6, 7 and 20 |
France |
NF | M1 |
NEN 13180 |
|---|
The Sonodec 25 GLX fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|---|---|---|---|
| 82 | GX082/L | 1 | 224 |
| 102 | GX102/L | 1 | 168 |
| 127 | GX127/L | 1 | 120 |
| 152 | GX152/L | 1 | 90 |
| 160 | GX160/L | 1 | 72 |
| 180 | GX180/L | 1 | 72 |
| 203 | GX203/L | 1 | 56 |
| 229 | GX229/L | 1 | 36 |
| 254 | GX254/L | 1 | 36 |
| 305 | GX305/L | 1 | 30 |
| 315 | GX315/L | 1 | 30 |
| 356 | GX356/L | 1 | 20 |
| 406 | GX406/L | 1 | 16 |
| 457 | GX457/L | 1 | 8 |
| 508 | GX508/L | 1 | 8 |
L (length): 0.5 = 0.5 meter, 1.0 = 1.0 meter, 1.5 = 1.5 meter and 2.0 = 2.0 meter
