Semidec Galva 150μ
The Semidec Galva 150μ is a semi-flexible duct, constructed from one layer of corrugated galvanized steel. The special seamed joint creates a very high air tightness and flexibility.
environment
- sustainable
- 100% recyclable
application
- suitable for mechanical air supply systems and air conditioning systems
- in systems where fumes are extracted
- above mentioned systems, where a special mechanical strength is required
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 375 °C |
| operating pressure: | max. +3000 Pa |
| operating air velocity: | max. 30 m/s |
| bending radius: | min. 1.0 x ∅ |
| diameter range: | 80 - 200 mm |
| standard length: | 10 mtr |
|
Construction |
|
|---|---|
| number of layers: | 1 |
whereof galvanized steel: |
1 layer of 150μ |
| appearance: | galvanized grey |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Graphs
|
|
|---|---|
|

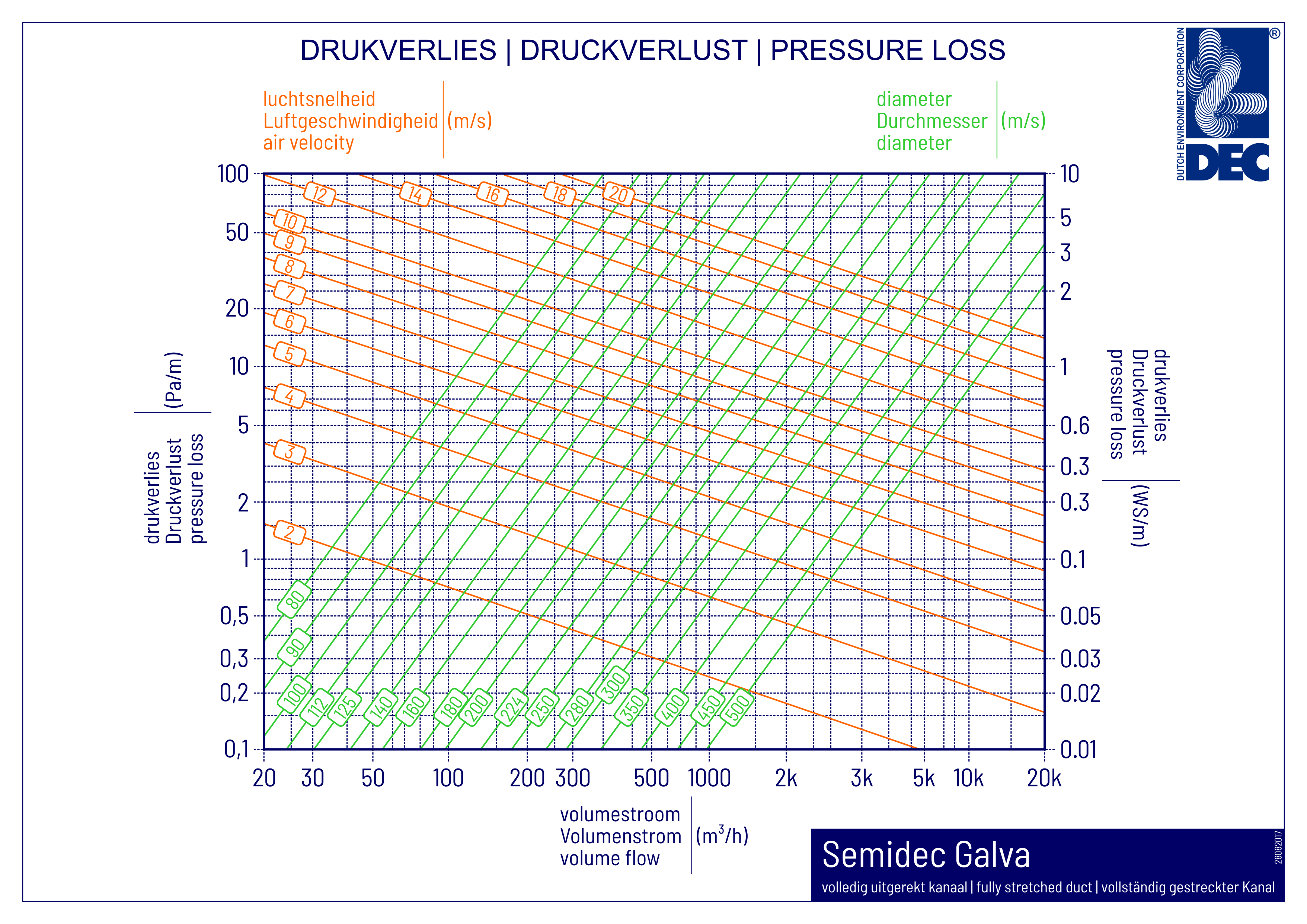

pressure loss (download as .PDF or as .PNG) |
|

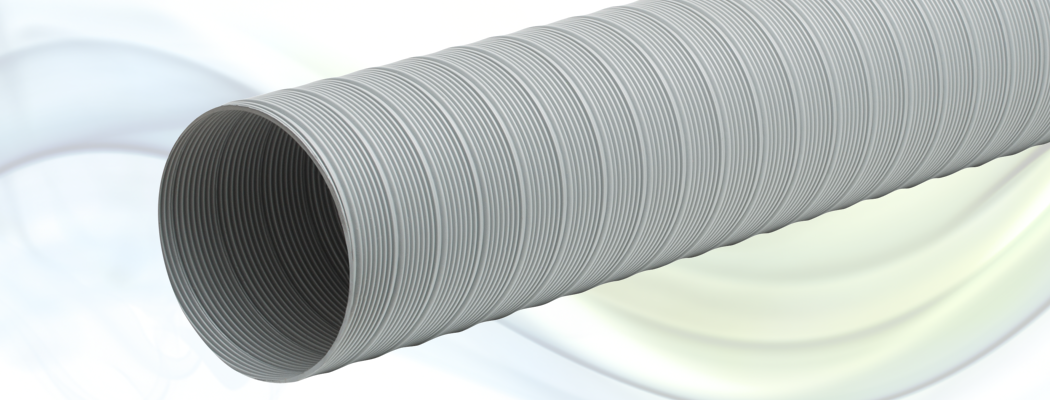

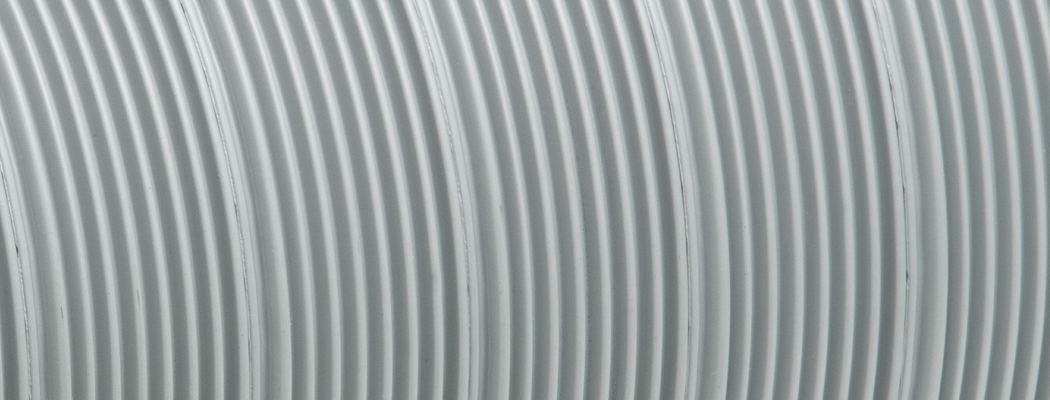

Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
Europe |
EN 13501-1 | A1 |
United Kingdom |
BS476 | Part 4, 6, 7 en 20 |
France |
NF | M0 |
Germany |
DIN4102 | A1 |
NEN 13180 |
|---|
The Semidec Galva fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|---|---|---|---|
| 80 | DSDX(80)080/3 | 1 | 160 |
| 100 | DSDX(80)100/3 | 1 | 119 |
| 125 | DSDX(80)125/3 | 1 | 84 |
| 150 | DSDX(80)150/3 | 1 | 60 |
| 160 | DSDX(80)160/3 | 1 | 60 |
| 180 | DSDX(80)180/3 | 1 | 40 |
| 200 | DSDX(80)200/3 | 1 | 40 |
| 250 | DSDX(80)250/3 | 1 | 24 |
| 315 | DSDX(80)315/3 | 1 | 14 |
| 355 | DSDX(80)355/3 | 1 | 12 |
