Quadrodec Alu
The Quadrodec Alu is a semi-flexible duct, constructed from one layer of corrugated aluminium. The special seamed joint creates a very high air tightness and flexibility.
environment
- sustainable
- 100% recyclable
characteristics
- space saving
- excellent mechanical properties
- lightweight
- can be combined with the Connectdec, Smoothdec and other DEC products
- easy to install
- time and energy saving
application
- suitable for mechanical air supply systems and air conditioning systems
- in systems where fumes are extracted
- above mentioned systems, where a special mechanical strength is required
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 250 °C |
| operating pressure: | max. +3000 Pa |
| operating air velocity: | max. 30 m/s |
| bending radius: | min. 1.0 x ∅ |
| diameter range: | see ordering info |
| standard length: | 1 mtr |
|
Construction |
|
|---|---|
| number of layers: | 1 |
whereof aluminium: |
1 |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Graphs
|
|
|---|---|
|

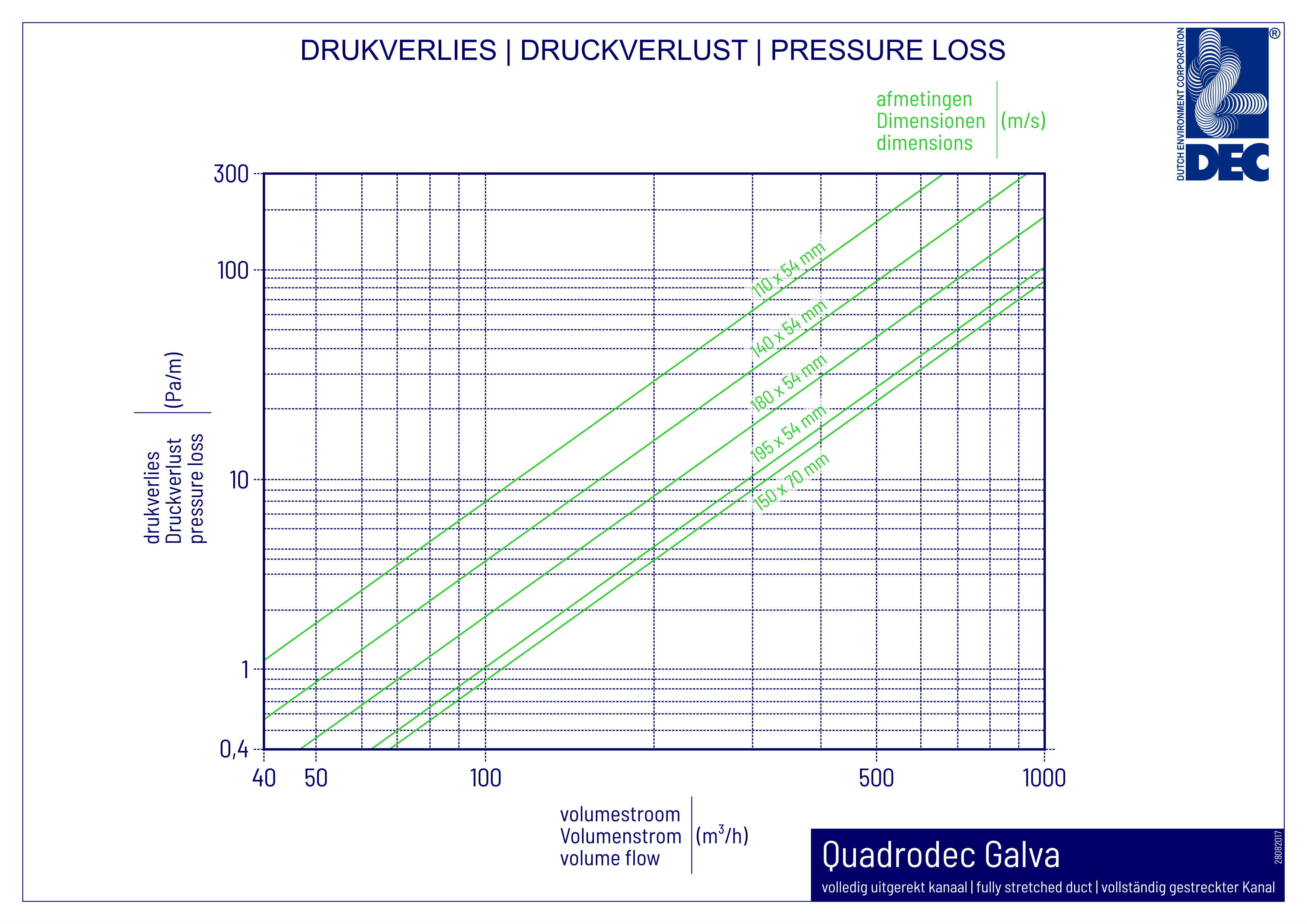

pressure loss (download as .PDF or as .PNG) |
|
Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
Europe |
EN 13501-1 | A1 |
NEN 13180 |
|---|
The Quadrodec Alu fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|---|---|---|---|
| 110x54 | DSDX(80)110x54/1 | 1 | n.a. |
| 140x54 | DSDX(80)140x54/1 | 1 | n.a. |
| 180x54 | DSDX(80)180x54/1 | 1 | n.a. |
| 195x54 | DSDX(80)195x54/1 | 1 | n.a. |
| 150x70 | DSDX(80)150x70/1 | 1 | n.a. |
