PINSA self adhesive pins
These self adhesive pins are suitable for fastening insulation blankets to square or rectangular air ducts.

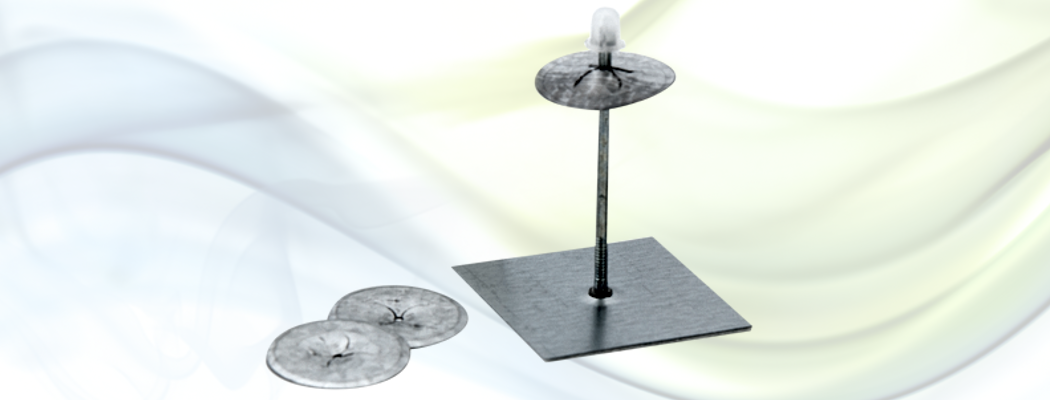

The pin has been manufactured out of galvanized steel. It consists of a pin and a base. The base is provided with a synthetic rubber tack coat. Clamps can be delivered with the pins. The clamp is going to be fastened to the PINSA after attaching the installation blanket. In consequence of this the blanket will stay in the correct position.
safety
Protective caps are available (PINSACAP). The use of these caps is always recommended where people can be injured by projecting pins.
Each pin will be delivered with a cap and clip. Seperate delivery of caps and clips is also possible.
|
Specifications |
|
|---|---|
| material pin and base: | galvanized steel |
| adhesive layer: | synthetic rubber |
| temperature range: | -40 °C to 80 °C |
peak temperature: |
100 °C for a short period of time |
| length pin: | 19 - 165 mm |
| dimension base: | 50 x 50 mm |
| number per m² | 10 - 12 pieces |
|
Specifications PINSA CLIP |
|
|---|---|
| material: | galvanized steel |
|
Specifications PINSA CAP |
|
|---|---|
| material: | nylon |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|

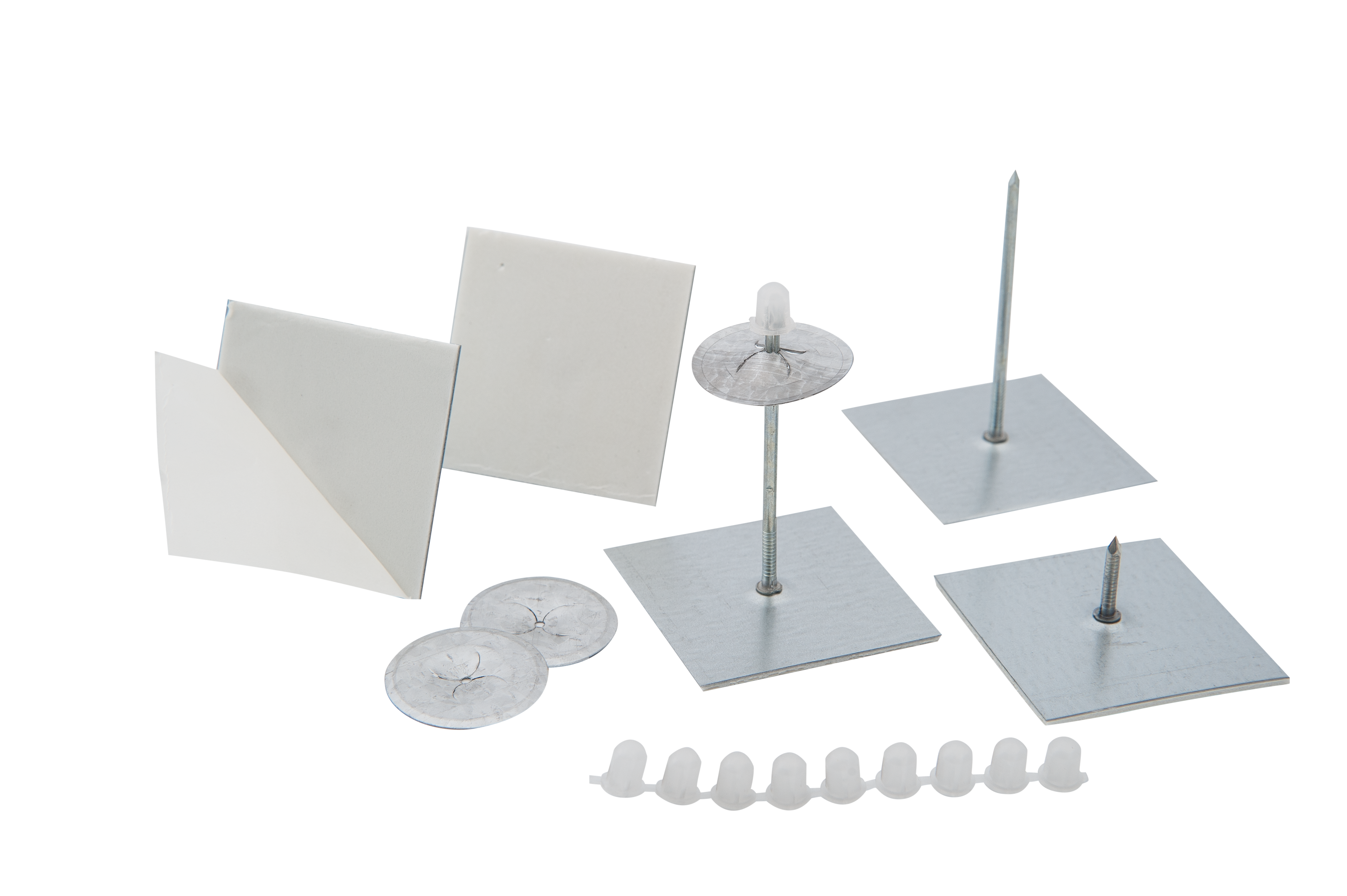

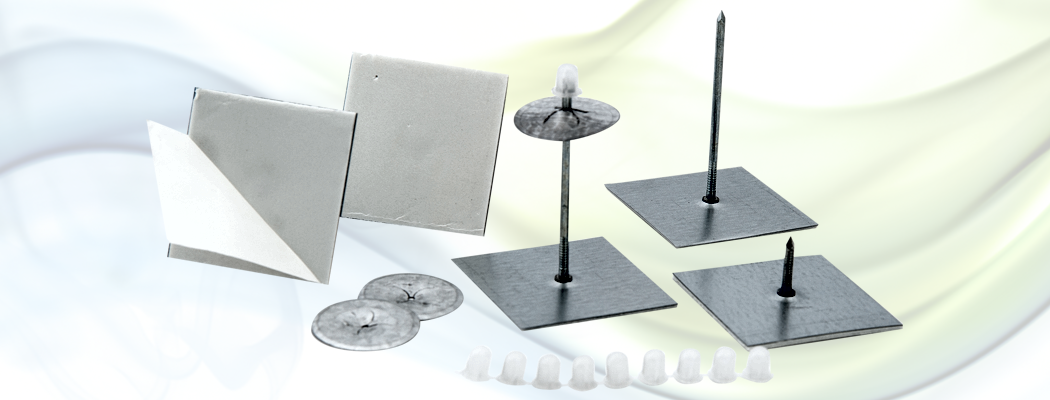

Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
not available |
 |
 |
 |
 |
|---|---|---|---|
| 19 mm | PINSA019 | 500 | 112 |
| 25 mm | PINSA025 | 500 | 112 |
| 32 mm | PINSA032 | 500 | 96 |
| 42 mm | PINSA042 | 500 | 96 |
| 51 mm | PINSA051 | 500 | 96 |
| 63 mm | PINSA063 | 500 | 96 |
| 76 mm | PINSA076 | 500 | 63 |
| 105 mm | PINSA105 | 500 | 45 |
| 165 mm | PINSA165 | 250 | 45 |
|
|
|
|
|---|---|---|---|
| PINSA clip | PINSACLIP | 1000 | 96 |
| PINSA cap | PINSACAP | 1000 | 96 |
