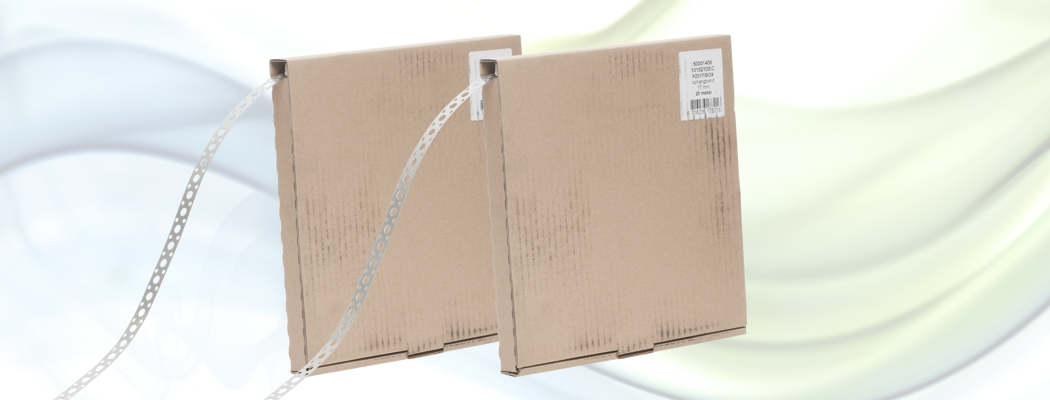

PP/PZ Suspension strap

The PP/PZ Suspension strap is a flexible multifunctional perforated strap for mounting various parts in air conditioning and ventilation systems.

construction

The Suspension strap is available in 2 different versions, galvanized and copolymer coated. The version with the copolymer coating is preferable for systems, which can be damaged by sliding or swinging. The Suspension strap is provided with holes for mounting, the holes make it possible to process various diameters.

Specifications standard version
material band: galvanized steel
length band: 10 or 20 mtr
width band: 17 mm
thickness band: 0.7 mm
hole diameter: 3.5 and 6.8 mm
Specifications pvc coated version
material band: galvanized steel
material coating: pvc
length band: 10 or 20 mtr
width band: 19 mm
thickness band: 1 mm
hole diameter: 6 mm
Technical specifications
Dutch specification
German specification
English specification
Product images
Certificates
not available

pvc coated 10 mtr PP019S 10 rolls 600
pvc coated 20 mtr PP019/BOX 1 box 250
galvanized steel 10 mtr PZ017S 10 rolls 600
galvanized steel 20 mtr PZ017/BOX 1 box 250
