Isosleeve 25

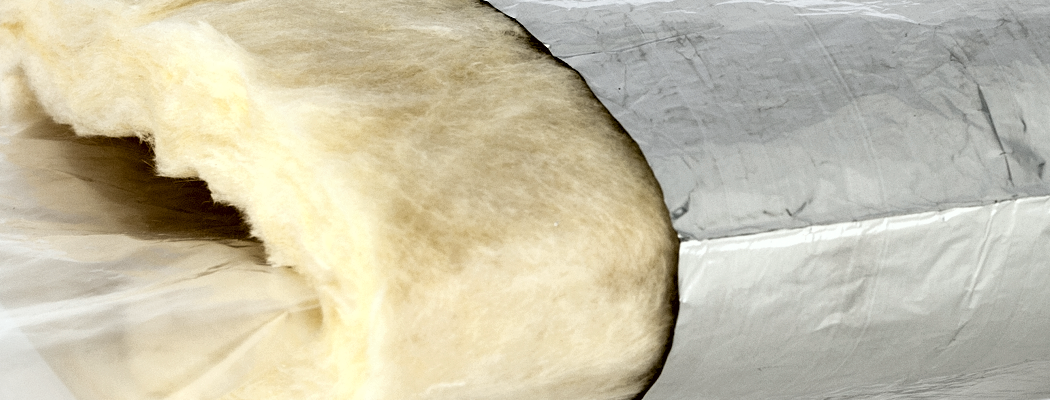

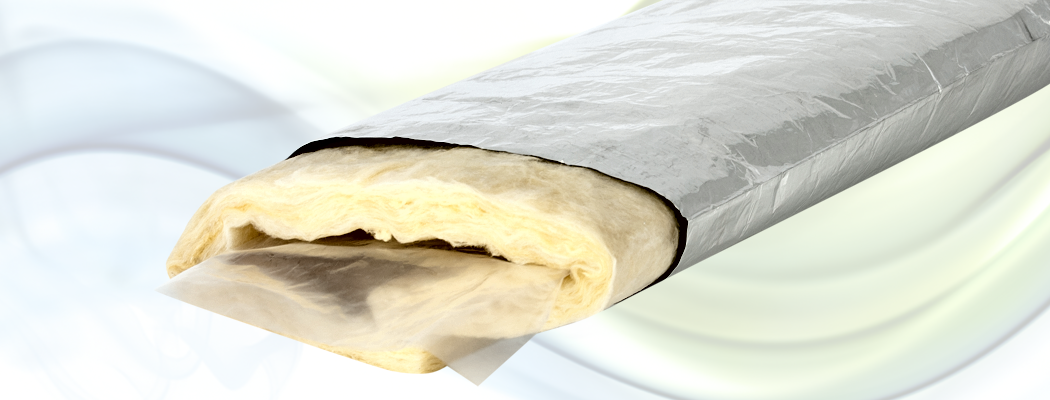

The Isosleeve 25 consists of an aluminum/polyester laminate outer jacket with a glass wool insulation layer. The Isosleeve comes standard with a plastic barrier. The barrier simplifies the mounting, and the installer will not have unnecessary contact with the glass wool fibres.
The thermal insulation is suitable for preventing condensation and minimizing heat loss and loss of cold.
application
- insulation in air supply systems
- air conditioning systems
- thermal insulation in order to prevent heat or cold loss
- prevention / removal of condensation
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 140 °C |
| operating pressure: | max. +2000 Pa |
| operating air velocity: | n.a. |
| bending radius: | n.a. |
| diameter range: | 82 - 508 mm |
| standard length: | 10 mtr |
|
Construction |
|
|---|---|
| barrier: | plastic film |
| glass wool blanket: | 25 mm, 16 kg/m³ |
r-value: |
0.65m² K/W (ASTM C177-76) |
| outer jacket: | aluminium/polyester laminate |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
Europe |
EN 13501-1 | B-s1,d0 |
France |
NF | M1 |
NEN 13180 |
|---|
The Isosleeve 25 fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
Marine Equipment Directive 2014/90/EU |
|---|
Declaration of Conformity |
 |
 |
 |
 |
|---|---|---|---|
| 82 | DHB082 | 1 | 90 |
| 102 | DHB102 | 1 | 81 |
| 127 | DHB127 | 1 | 72 |
| 152 | DHB152 | 1 | 63 |
| 160 | DHB160 | 1 | 63 |
| 180 | DHB180 | 1 | 54 |
| 203 | DHB203 | 1 | 45 |
| 229 | DHB229 | 1 | 45 |
| 254 | DHB254 | 1 | 36 |
| 305 | DHB305 | 1 | 27 |
| 315 | DHB315 | 1 | 27 |
| 356 | DHB356 | 1 | 27 |
| 406 | DHB406 | 1 | 22 |
| 457 | DHB457 | 1 | 20 |
| 508 | DHB508 | 1 | 18 |
50 mm glass wool blanket |
|---|
This product is, on request and under different delivery conditions, available with a 50 mm thick insulation blanket. The r-value of this insulation blanket is 1.3m² K/W (ASTM C177-76). The order number of this product is DHB50(diameter). |
