Decflex
If you decide to use a flexible system, please be sure you select the correct type of chimney lining. The diameter is stipulated by the total length, including the connections and course of the tube lining, the capacity, the type of appliance and the fuel. The choice of system is depending of the used appliance and the national standards and building regulations.
The Decflex tube lining material is an universal system with CE standards and suitable for over- and under pressure applications within wet or dry circumstances.
environment
- sustainable
- 100% recyclable
application
- in systems with no special demands regarding condensation
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 450 °C |
| operating pressure: | max. +3000 Pa |
| operating air velocity: | max. 30 m/s |
| bending radius: | min. 3.0 x ∅ |
| diameter range: | 80 - 225 mm |
| standard length: | 30 or 50 mtr |
|
Construction Decflex SWE/316L/0.10 mm |
|
|---|---|
| number of layers: | 1 |
whereof austenitic stainless steel (AISI 316L / DIN 1.4435): |
1 à 100 micron |
| appearance: | stainless steel |
|
Construction Decflex SWE/316L/0.12 mm |
|
|---|---|
| number of layers: | 1 |
whereof austenitic stainless steel (AISI 316Ti / DIN 1.4571): |
1 à 120 micron |
| appearance: | stainless steel |
|
Construction Decflex SW/316TI/0.24 mm |
|
|---|---|
| number of layers: | 1 |
whereof austenitic stainless steel (AISI 316Ti / DIN 1.4571): |
1 à 240 micron |
| appearance: | stainless steel |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|

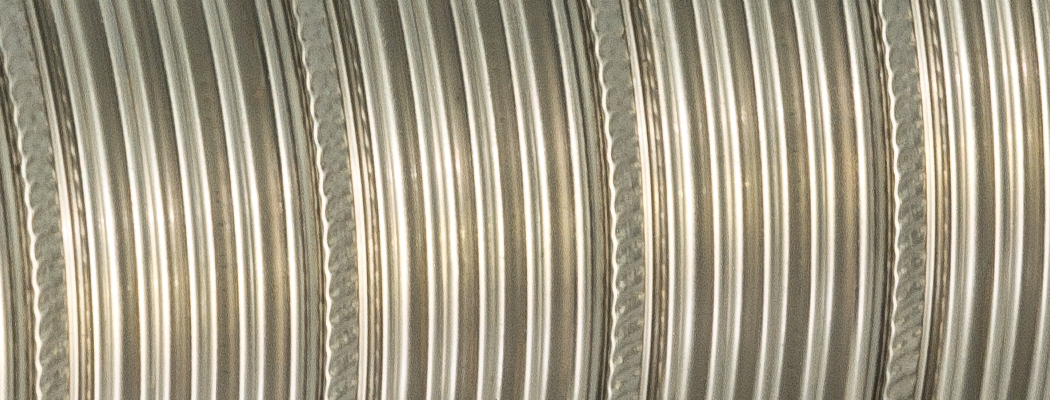

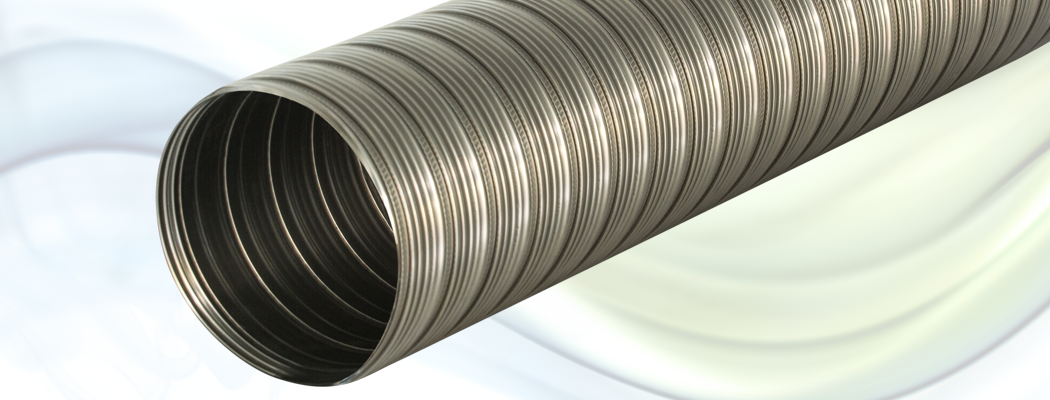

Product images
|
|
|---|---|
Certificates |
|---|
| see technical specifications. |
Declaration of Performance |
|
|---|---|
| Decflex SW | CE Declaration of Performance No : DoP-DSW-1-13 |
| Decflex SWE | CE Declaration of Performance No : DoP-DSWE-1-13 |
| Decflex TW | CE Declaration of Performance No : DoP-DTW-1-13 |
Marine Equipment Directive 2014/90/EU |
|---|
Declaration of Conformity |
NEN 13180 |
|---|
The Decflex fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
Decflex SWE/316L/0.10 mm
 |
 |
 |
 |
|---|---|---|---|
| 80 | D1AYE080/LN | 1 | 1 |
| 90 | D1AYE090/LN | 1 | 1 |
| 100 | D1AYE100/LN | 1 | 1 |
| 110 | D1AYE110/LN | 1 | 1 |
| 120 | D1AYE120/LN | 1 | 1 |
| 125 | D1AYE125/LN | 1 | 1 |
| 130 | D1AYE130/LN | 1 | 1 |
| 140 | D1AYE140/LN | 1 | 1 |
| 150 | D1AYE150/LN | 1 | 1 |
| 160 | D1AYE160/LN | 1 | 1 |
| 180 | D1AYE180/LN | 1 | 1 |
| 200 | D1AYE200/LN | 1 | 1 |
Decflex SWE/316L/0.12 mm
|
|
|
|
|---|---|---|---|
| 80 | D1BYE080/LN | 1 | 1 |
| 90 | D1BYE090/LN | 1 | 1 |
| 100 | D1BYE100/LN | 1 | 1 |
| 110 | D1BYE110/LN | 1 | 1 |
| 120 | D1BYE120/LN | 1 | 1 |
| 125 | D1BYE125/LN | 1 | 1 |
| 130 | D1BYE130/LN | 1 | 1 |
| 140 | D1BYE140/LN | 1 | 1 |
| 150 | D1BYE150/LN | 1 | 1 |
| 160 | D1BYE160/LN | 1 | 1 |
| 180 | D1BYE180/LN | 1 | 1 |
| 200 | D1BYE200/LN | 1 | 1 |
Decflex SW/316Ti/0.12 mm
|
|
|
|
|---|---|---|---|
| 80 | D2BY080/LN | 1 | 1 |
| 90 | D2BY090/LN | 1 | 1 |
| 100 | D2BY100/LN | 1 | 1 |
| 110 | D2BY110/LN | 1 | 1 |
| 120 | D2BY120/LN | 1 | 1 |
| 125 | D2BY125/LN | 1 | 1 |
| 130 | D2BY130/LN | 1 | 1 |
| 140 | D2BY140/LN | 1 | 1 |
| 150 | D2BY150/LN | 1 | 1 |
| 160 | D2BY160/LN | 1 | 1 |
| 180 | D2BY180/LN | 1 | 1 |
| 200 | D2BY200/LN | 1 | 1 |
L (length): 30 = 30 Meter and 50 = 50 Meter
