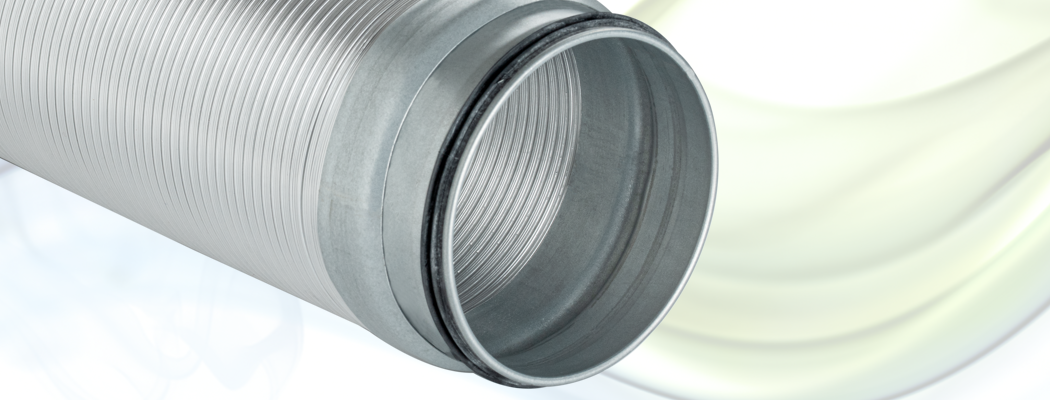

Connectdec type Compacdec
The Connectdec type Compacdec is a semi-flexibele duct, constructed from two layers of corrugated aluminium. The special seamed joint creates a very high air tightness and flexibility.

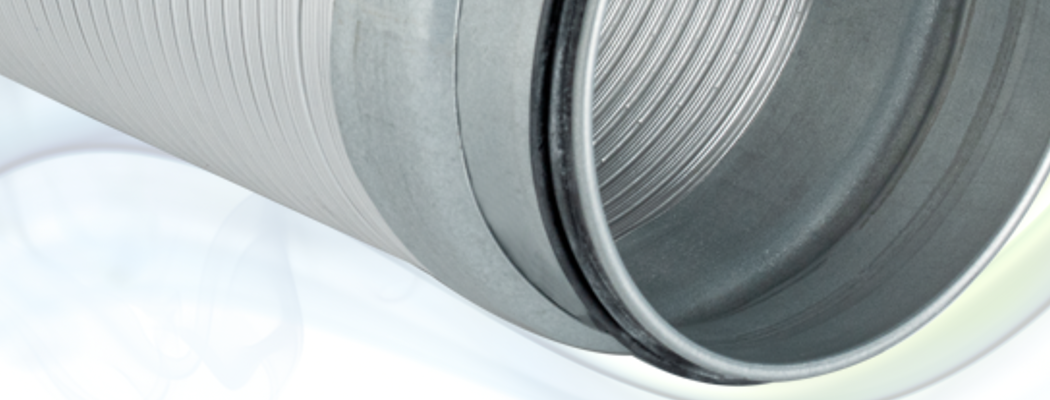

The duct is standard fitted with galvanized metal sleeves at both ends to fit to any rigid ductwork or appliance instantly.
You can choose between the following connections (connections according EN1506):
- 2x male (type 1)
- male - female (type 2)
- 2x female (type 3)
environment
- sustainable
- 100% recyclable
application
- can be combined immediately with our air valves (e.g. DAV or DVSC)
- suitable for mechanical air supply systems and air conditioning systems
- in systems where fumes are extracted
- above mentioned systems, where a special mechanical strength is required
- handy connector between ventilation units and air duct systems
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 250 °C |
peak load: |
400 °C |
| operating pressure: | max. +3000 Pa |
| operating air velocity: | max. 30 m/s |
| bending radius: | min. 2.0 x ∅ |
| diameter range: | 80 - 315 mm |
| standard length: | 0.5, 1.0 and 1.5 mtr |
|
Construction |
|
|---|---|
| number of layers: | 2 |
whereof aluminium: |
2 |
| sleeves: | galvanized steel |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Graphs
|
|
|---|---|
|
pressure loss (download as .PDF or as .PNG) |
|
Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
Europe |
EN 13501-1 | A1 |
United Kingdom |
BS476 | Part 4, 6, 7 and 20 |
France |
NF | M0 |
Germany |
DIN4102 | A1 |
NEN 13180 |
|---|
The Connectdec type Compacdec fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|
|
|---|---|---|---|---|---|
| 0.5 mtr | 1.0 mtr | 1.5 mtr | |||
| 80 | COTCDM080/L | 1 | 330 | 220 | 160 |
| 100 | COTCDM100/L | 1 | 240 | 160 | 106 |
| 125 | COTCDM125/L | 1 | 144 | 96 | 62 |
| 150 | COTCDM150/L | 1 | 102 | 64 | 44 |
| 160 | COTCDM160/L | 1 | 96 | 62 | 40 |
| 200 | COTCDM200/L | 1 | 60 | 40 | 24 |
| 250 | COTCDM250/L | 1 | 36 | 24 | 16 |
| 315 | COTCDM315/L | 1 | 18 | 12 | 10 |
T (type): 1 = type 1 (♂♂), 2 = type 2 (♂♀) and 3 = type 3 (♀♀)
L (length): 0.5 = 0.5 meter, 1.0 = 1.0 meter and 1.5 = 1.5 meter
