Combidec 2300

Combidec 2300 ducts are solid, very flexible, extremely strong laminate ducts for different ranges of application. The base of the Combidec series is an aluminum/polyester laminate duct with an outer jacket of copolymer. The ducts can be attached easily to round and oval connection parts without any problems.

The fire resistancy of the Combidec 2300 ducts have been tested in several countries, according to current international standards. Because of the “sandwich construction”, the different layers of polyester and aluminium are overlapping each other completely. In case of fire, the system is able to function longer. The outer jacket is wear resistant and steam tight.

the advantages compared to pvc ducting

  • higher temperature resistancy
  • less smoke development in case of fire

the advantages compared to aluminium laminated ducting

  • higher tear resistancy
  • better mechanical protection against external influences
  • better resistance to local loads

application

  • steam return lines
  • applications where good mechanical strength is required
  • good to use in devices
  • to use in devices for mechanical ventilation
Specifications
temperature range: -30 °C to 140 °C
operating pressure: max. +3000 Pa
operating air velocity: max. 30 m/s
bending radius: min. 0.54 x ∅
diameter range: 52 - 710 mm
standard length: 10 mtr
Construction
number of layers: 5
whereof aluminium:
3 à 25 micron
whereof polyester:
1 à 12 micron
whereof embossing:
1 à 90 micron
total thickness: 177 micron (without adhesive)
wire spacing: 18 mm
appearance: grey, black and white
Technical specifications
Dutch specification
German specification
English specification
Graphs

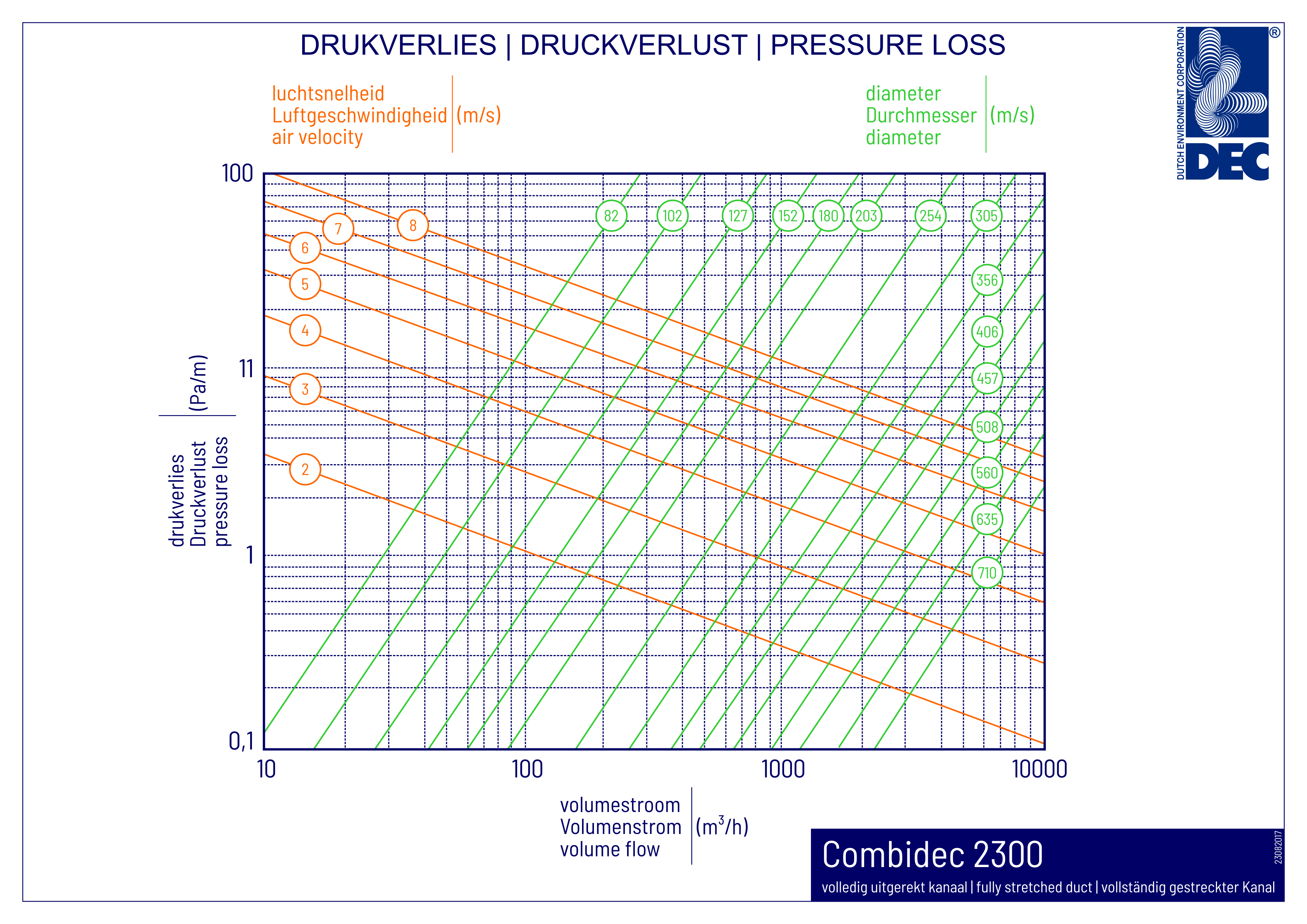

pressure loss (download as .PDF or as .PNG)

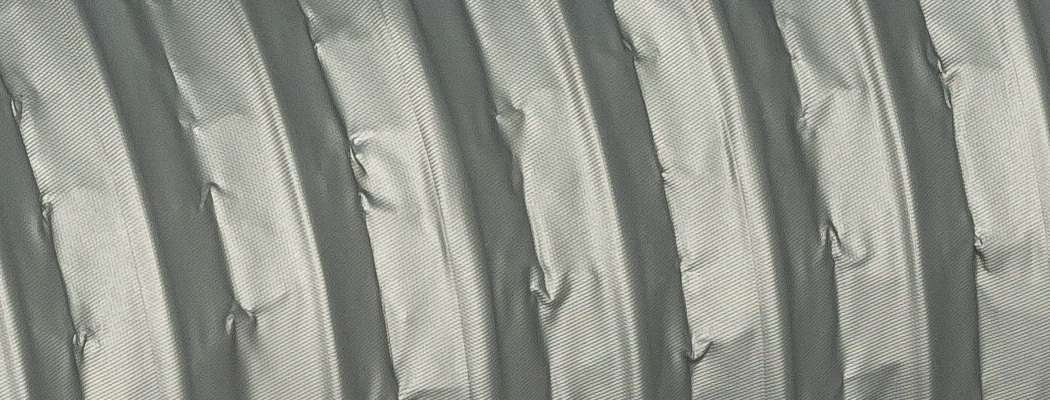

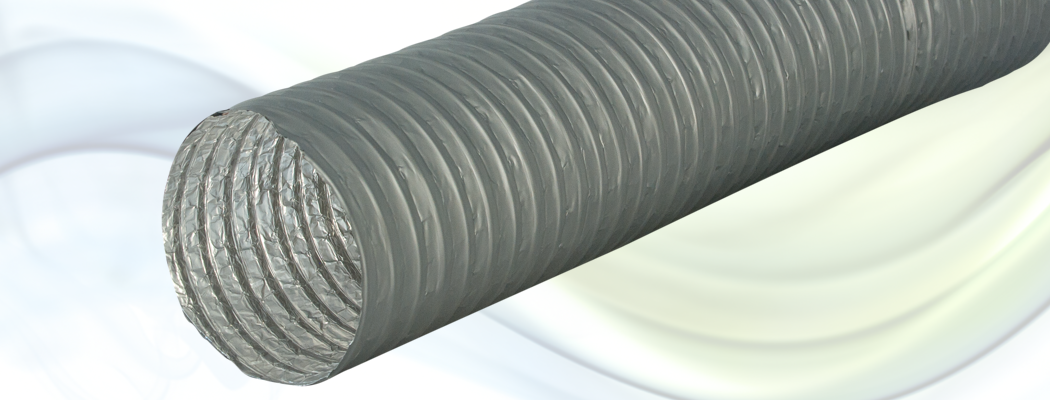

Product images
Certificates
Netherlands
NEN6065/6066 Class 1 and 3
United Kingdom
BS476 Part 6,7 and 20
Sweden
BBR TG0025 and TG0051
NEN 13180

The Combidec 2300 fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts".

52 DC23C052 1 140
65 DC23C065 1 112
76 DC23C076 1 240
82 DC23C082 1 180
102 DC23C102 1 170
127 DC23C127 1 112
152 DC23C152 1 84
160 DC23C160 1 84
180 DC23C180 1 45
203 DC23C203 1 45
229 DC23C229 1 28
254 DC23C254 1 28
305 DC23C305 1 18
315 DC23C315 1 18
356 DC23C356 1 15
406 DC23C406 1 10
457 DC23C457 1 8
508 DC23C508 1 8
559 DC23C559 1 3
610 DC23C610 1 3
635 DC23C635 1 3
710 DC23C710 1 2

C (color code): G = grey, B = black and W = white
